Introducing the AgEagle’s MicaSense Altum-PT: The most accurate results at ultra-high resolutions multispectral data with a radiometric thermal imager.

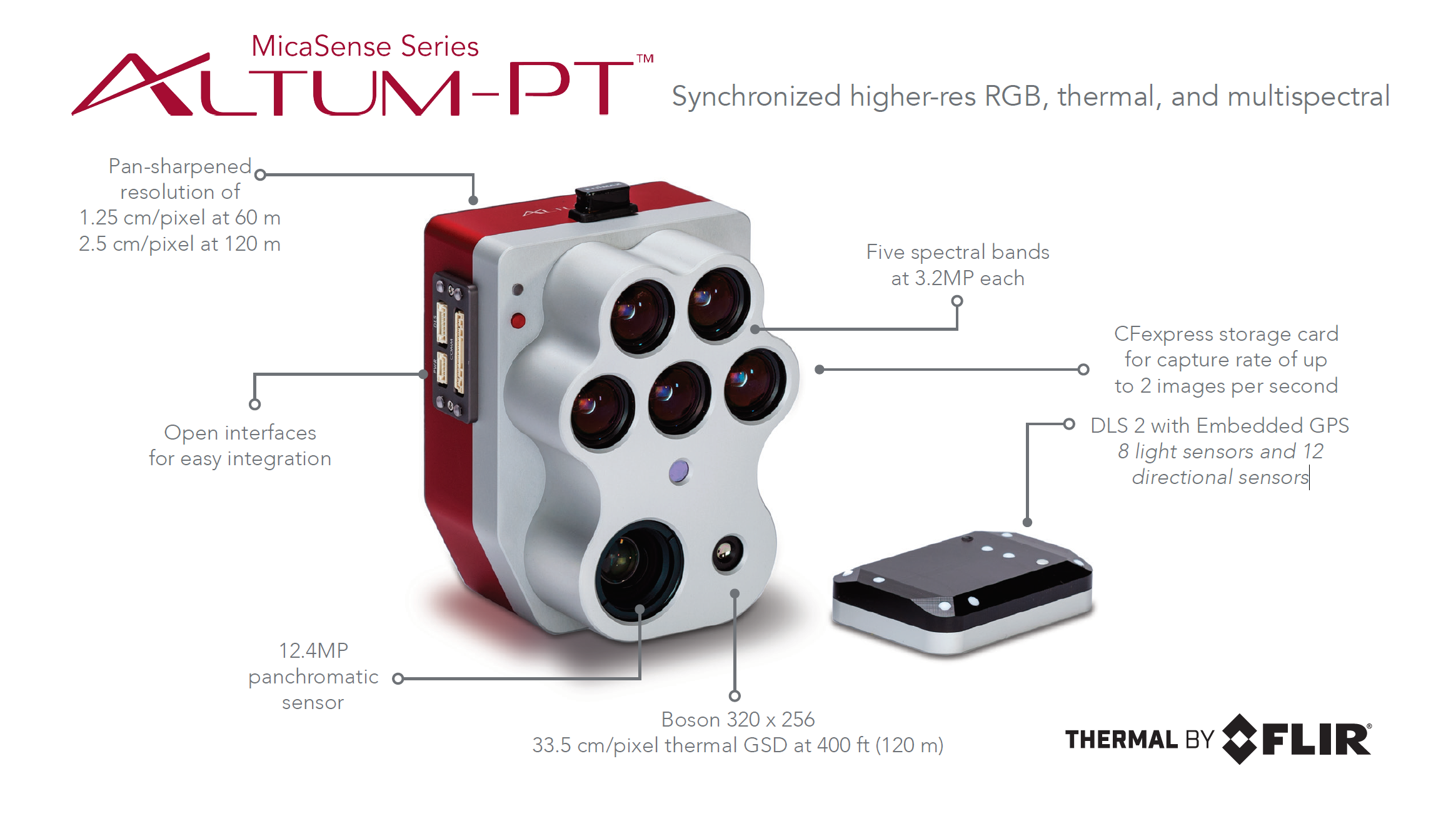

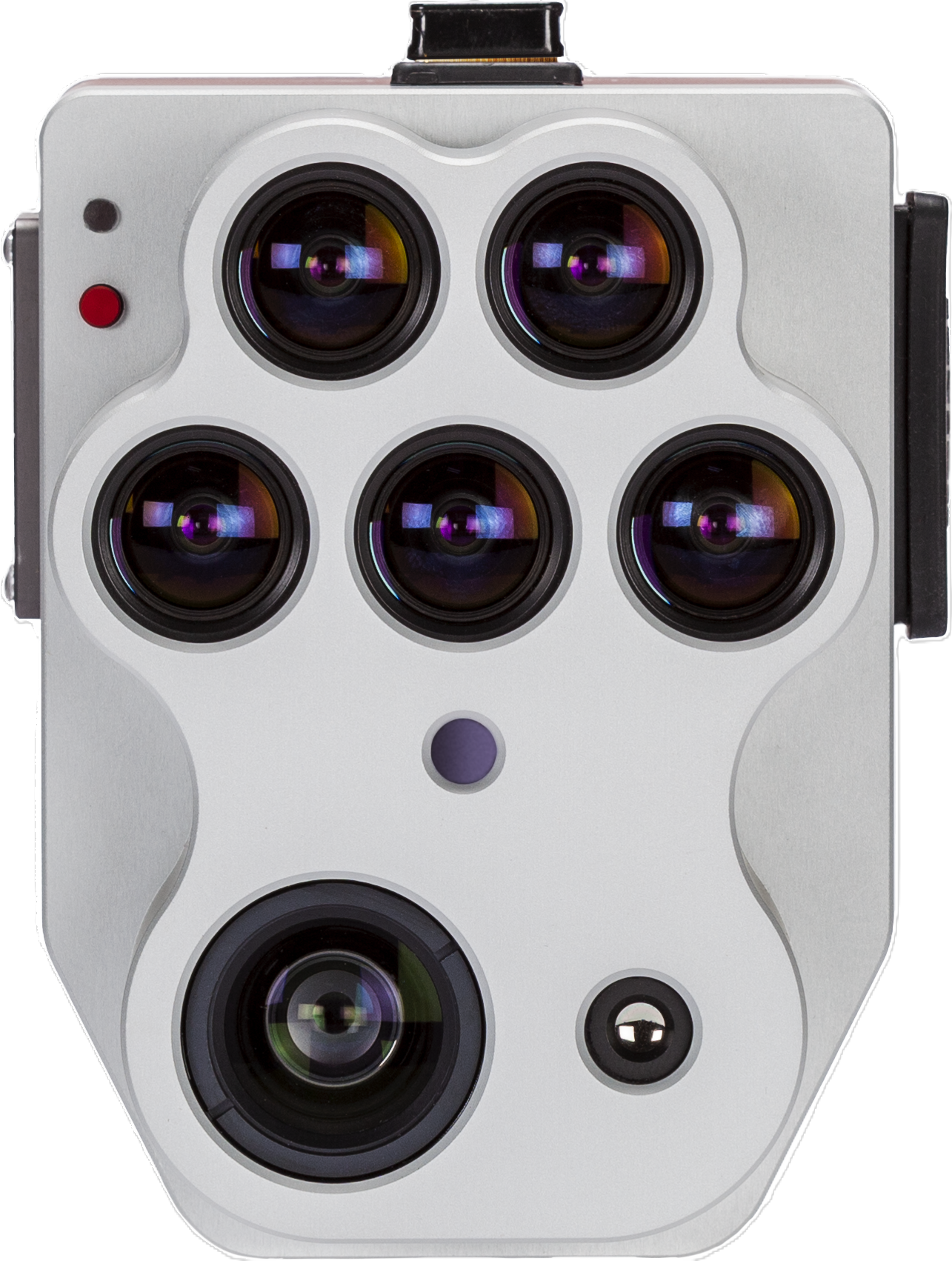

The Altum-PT is an optimized 3-in-1 solution for advanced remote sensing and agricultural research. This solution seamlessly integrates an ultra-high-resolution, 12 MP panchromatic imager, a built-in 320 x 256 radiometric thermal imager, and five discrete spectral bands to obtain synchronized outputs such as RGB color, crop vigor, heat maps, and high-resolution panchromatic in just one flight. Higher resolution also means more analytical capabilities and applications: discern issues at the plant level, even in the early growth stages, including early-stage stand counting. Altum-PT also features a global shutter for distortion-free results on any platform, open APIs and standard data formats for compatibility with multiple processing platforms, and a new professional removable storage standard in CFexpress, for two captures per second and the fastest turnaround time between flights.
Kit Contents
• Altum-PT sensor
• DLS 2 with embedded GPS
• Calibrated Reflectance Panel (CRP 2)
• USB WiFi dongle
• Lens cover
• Necessary integration cables
• Assorted mounting hardware
• CFexpress card
• CFexpress card reader
• Hard Carrying Case
• Quick Start Guide
*Mount not included. Sold separately based on drone used.

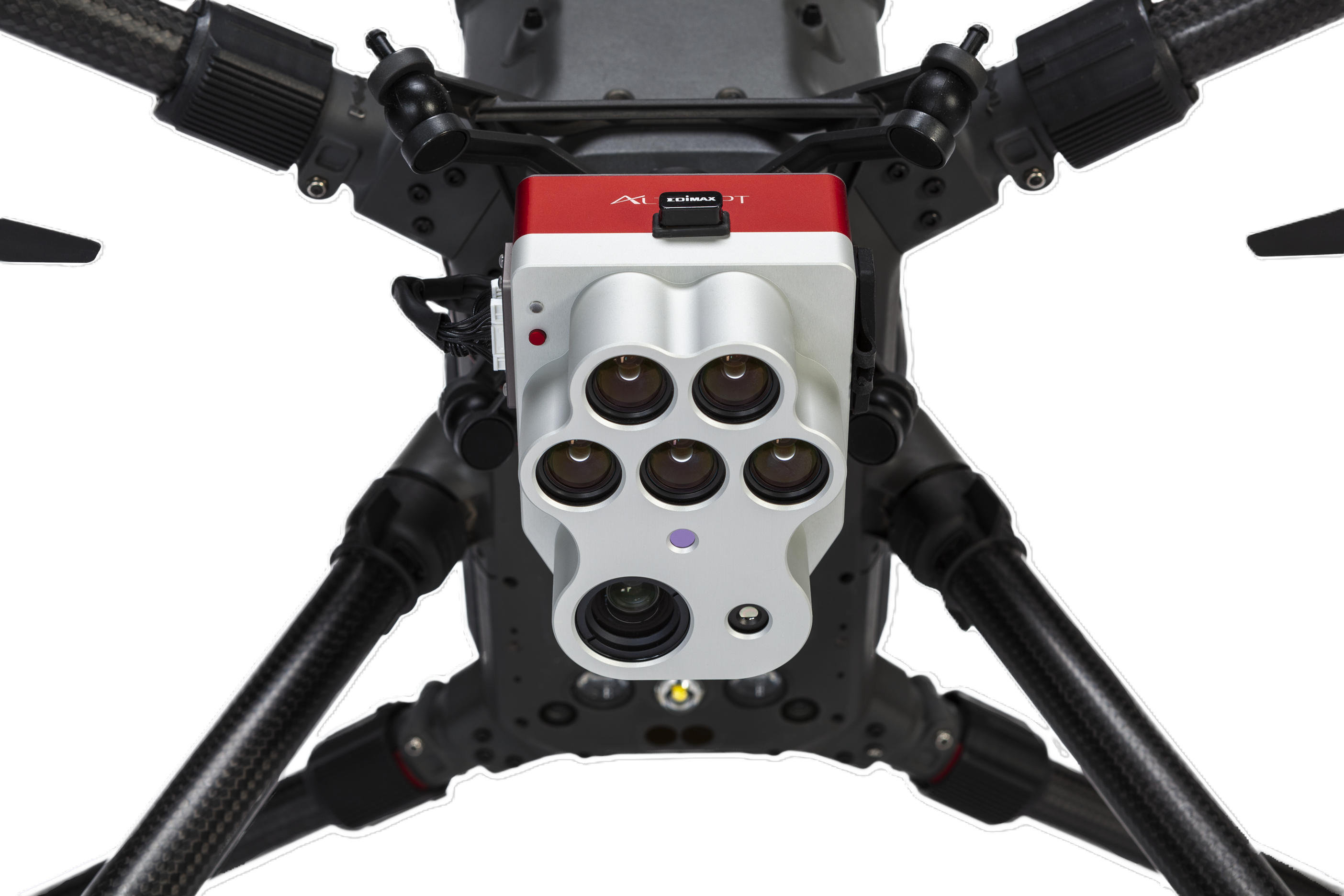

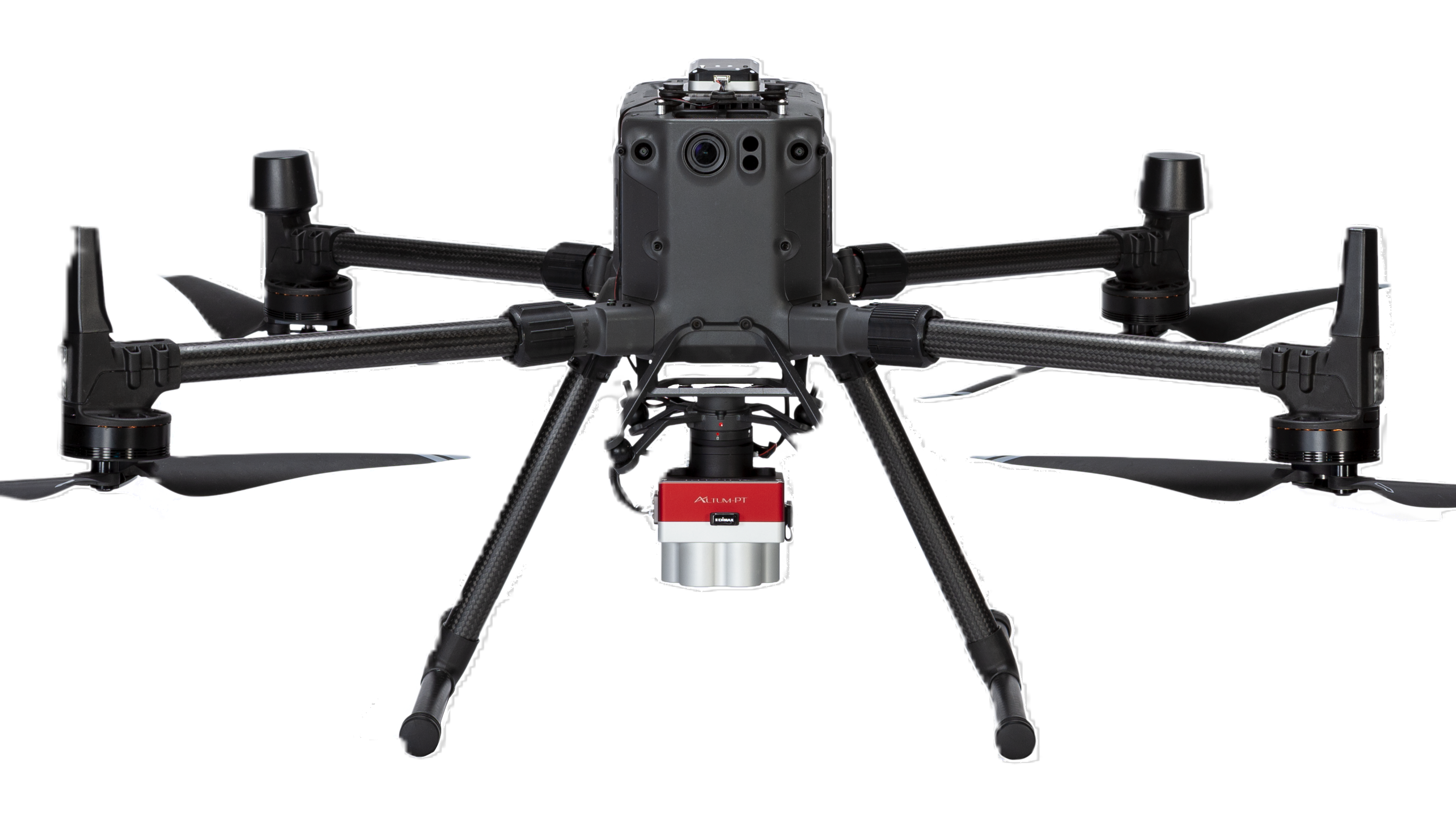

*DJI SkyPort mount allows for RTK support for DJI Matrice M300 drone and triggering and controlling the camera through DJI’s flight planner.
Specifications
▪ Weight: 460 g ( 16.2 oz.) Altum-PT + DLS 2
▪ Dimensions: 11.0 x 8.0 x 6.9 cm (4.3in x 3.1in x 2.7in)
▪ External power: 7.0 V - 25.2 V
▪ Spectral bands: Blue, green, red, red edge, near-IR (global shutter, narrowband)
▪ Thermal: FLIR LWIR thermal infrared 7.5-13.5um radiometrically calibrated
▪ Wavelength (nm): Blue (475 nm center, 32 nm bandwidth), green (560 nm center, 27nm bandwidth), red (668 nm center, 14 nm bandwidth), red edge (717 nm center, 12nm bandwidth), near-IR (842 nm center, 57 nm bandwidth)
▪ RGB output: 12.4 MP (global shutter, aligned with all bands)*
▪ Ground sample distance:
o 5.28 cm per pixel (per MS band) at 120m AGL
o 2.49 cm per pixel (panchromatic band) at 120m AGL
▪ Capture rate: 2 captures per second raw DNG
▪ Interfaces: 4 GPIO: Trigger input, top of frame out, 1 PPS out, host button. USB 2.0 port for WiFi, serial, 10/100/1000 ethernet, and CF Express Storage.
▪ Field of view:
o 50.2° HFOV x 38.4° VFOV (MS)
o 46.2° HFOV x 34.7 VFOV (PAN)
o 48.1º x 39.3º (thermal)
▪ Triggering options: Timer mode, overlap mode, external trigger mode (PWM, GPIO,serial and Ethernet options), manual capture mode
* with appropriate post-processing
Note: Specifications are subject to change without notice
