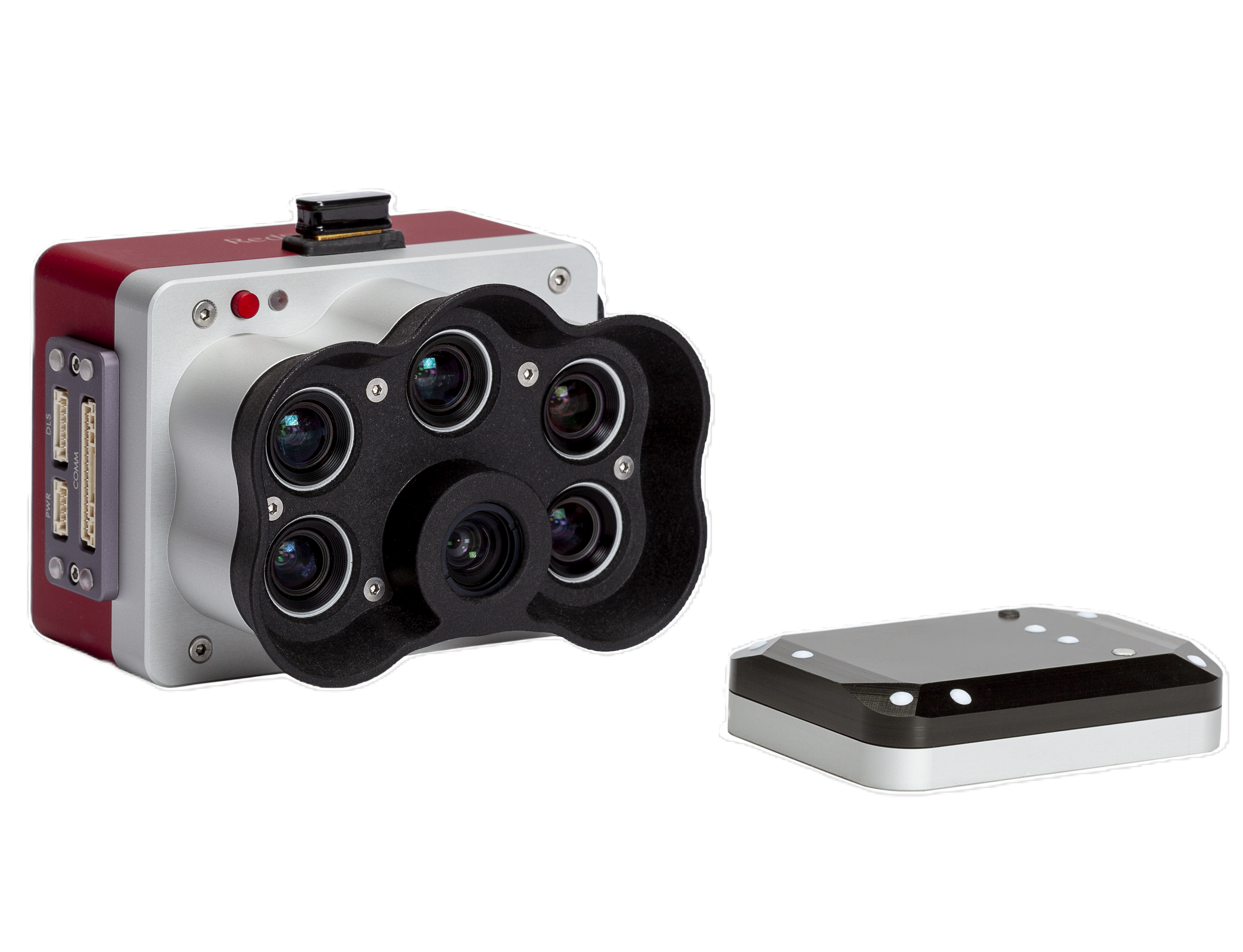

Introducing AgEagle’s RedEdge-P: The ultimate solution for high-res RGB and multispectral data.

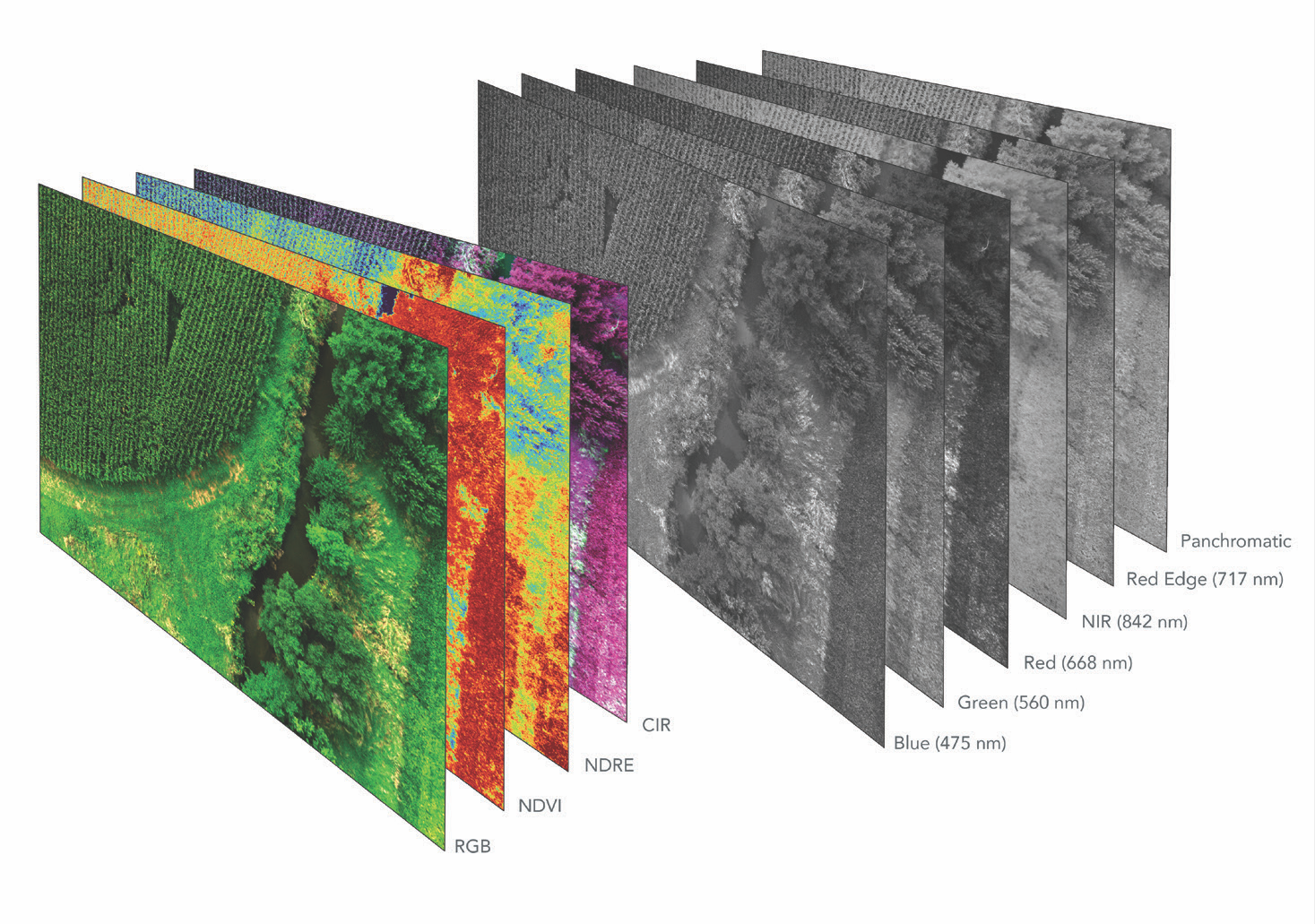

The RedEdge-P is the rugged, high-quality, powerful multispectral sensor you’ve come to trust, now with a high-resolution panchromatic band for pan-sharpened output resolutions of 2cm (at 60m) - twice the ground resolution of the industry-standard RedEdge-MX. It is a single camera solution that captures calibrated high-resolution multispectral and RGB imagery, with an optimized FOV and capture rate for efficient flights. This solution seamlessly integrates a high-resolution all-color imager with synchronized multispectral imagers to enable pixel-aligned outputs at previously unattainable resolutions while maintaining the efficiency and reliability of the RedEdge legacy. Raw data from RedEdge-P is open for processing using the standard household softwares in the industry.
RedEdge-P uses the professional-grade CFexpress memory card standard, providing removable storage with customizable sizes from 64 Gigabytes to 2 terabytes, allowing constant capture of all image bands every second for over 24 hours. For jobs requiring multiple flights, there’s no need to plug cables into the camera after a flight or bring your computer to the field. RedEdge-P’s removable storage gets your next flight started in seconds.
Kit Contents
• RedEdge-P sensor
• DLS 2 with embedded GPS
• Calibrated Reflectance Panel (CRP 2)
• USB WiFi dongle
• Lens cover
• Necessary integration cables
• Assorted mounting hardware
• CFexpress card
• CFexpress card reader
• Hard Carrying Case
• Quick Start Guide
*Mount not included. Sold separately based on drone used.

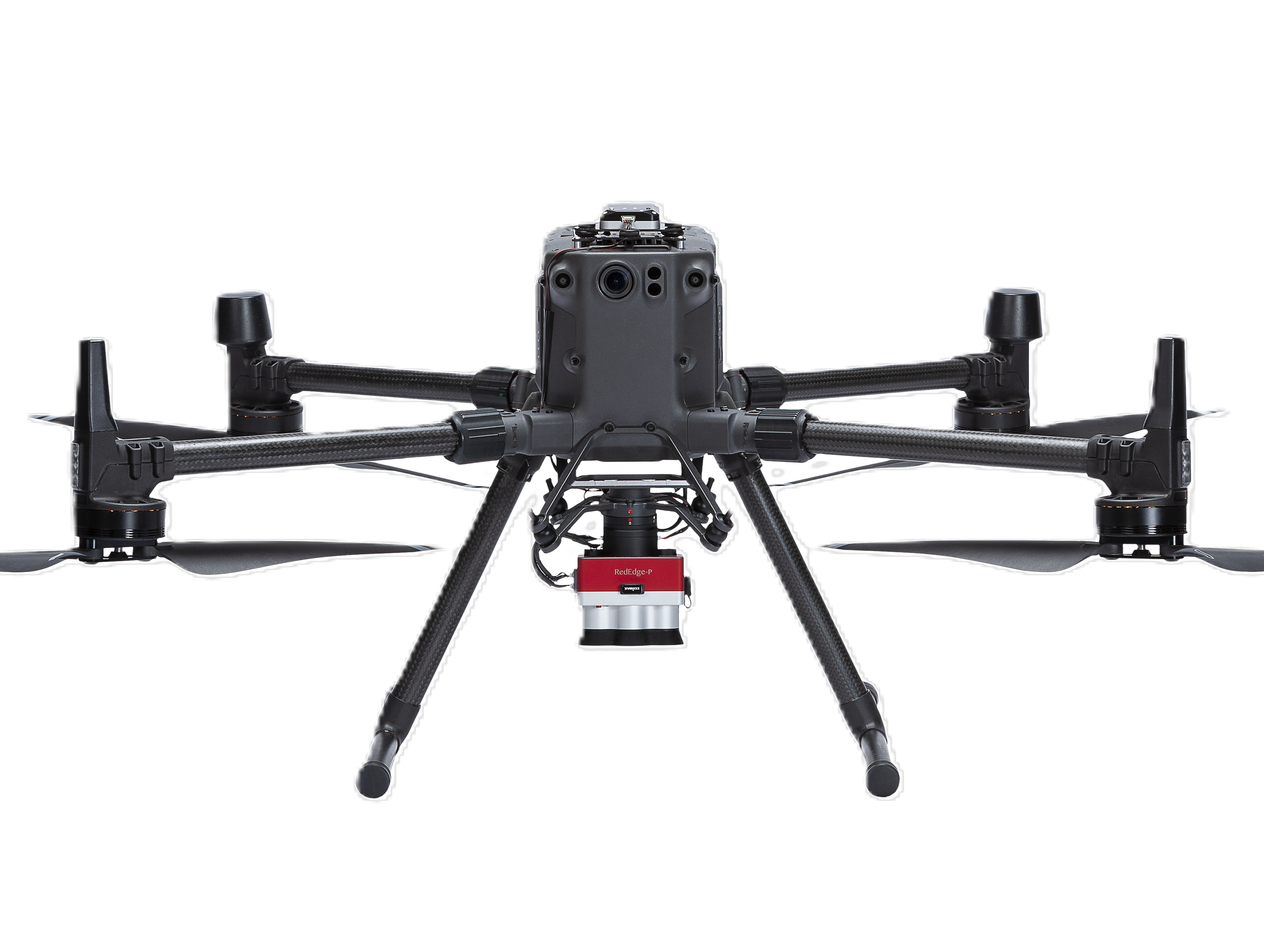

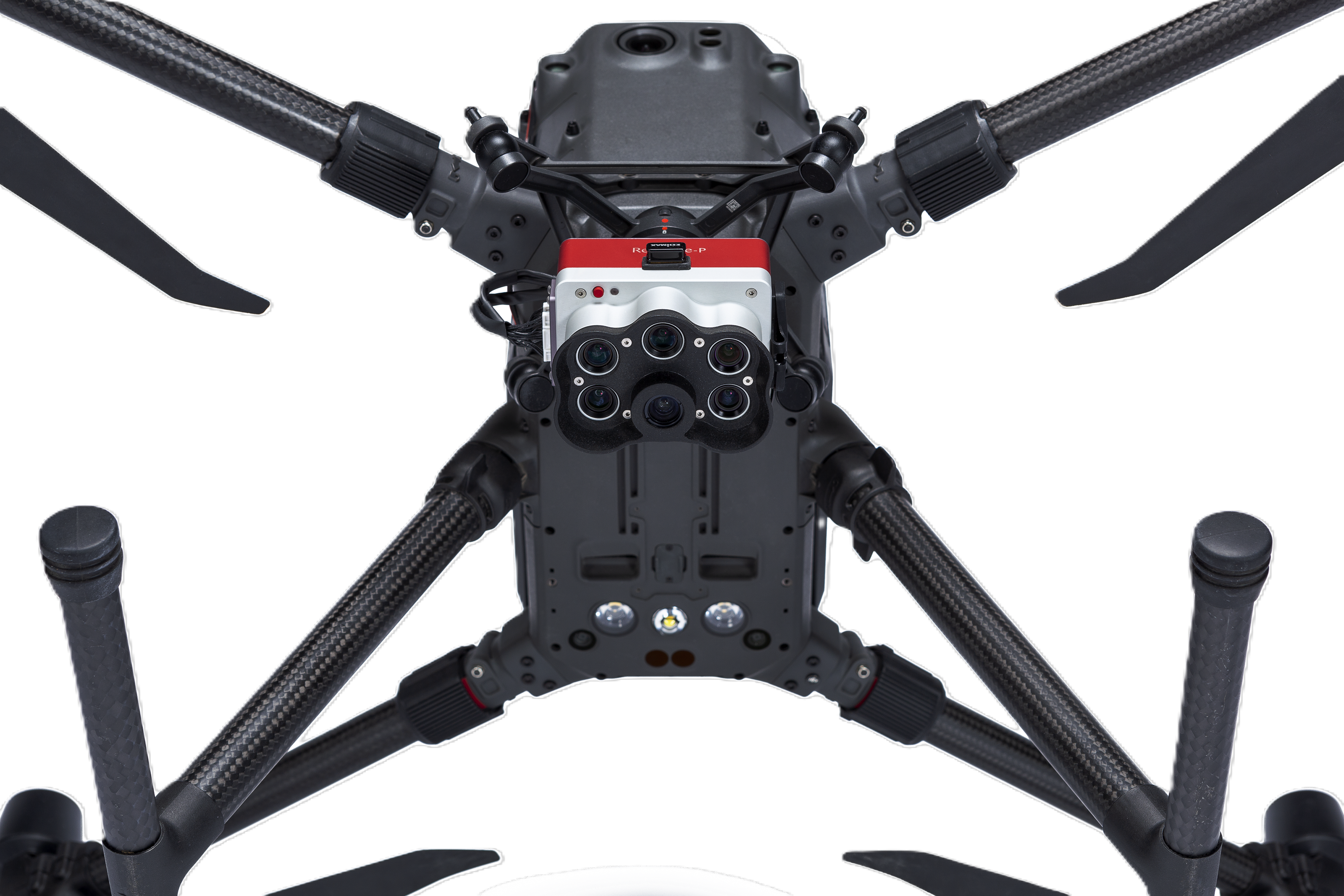

*DJI SkyPort mount allows for RTK support for DJI Matrice M300 drone and triggering and controlling the camera through DJI’s flight planner.
Main Applications
• Plant counting
• Phenotyping
• Plant health mapping
• Fertilizer management
• Disease identification
• Species differentiation and weed detection
• Advanced crop scouting
• High-res 3D point clouds
Specifications
▪ Weight: 300g (10.6 oz.) RedEdge-P + DLS 2
▪ Dimensions: 8.2 x 6.2 x 5.4 cm (3.2in x 2.4in x 2.1in)
▪ External power: 7.0 V - 25.2 V

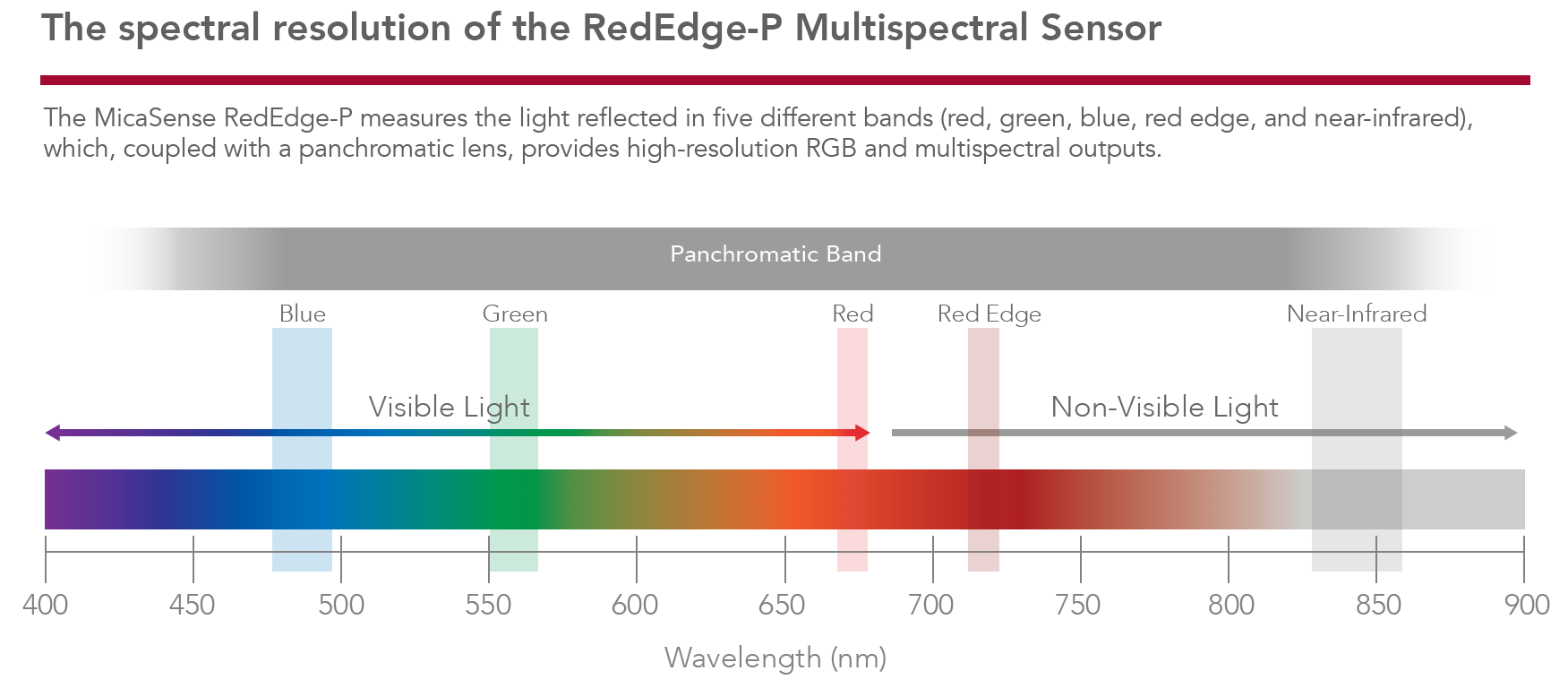

▪ Spectral bands: Blue, green, red, red edge, near-IR (global shutter, narrowband)
▪ Wavelength (nm): Blue (475 nm center, 32 nm bandwidth), green (560 nm center, 27 nm bandwidth), red (668 nm center, 14 nm bandwidth), red edge (717 nm center, 12 nm bandwidth), near-IR (842 nm center, 57 nm bandwidth)
▪ RGB output: 5.1 MP (global shutter, aligned with all bands)*
▪ Ground sample distance: o 7.7cm per pixel (per MS band) at 120m AGL
o 3.98cm per pixel (panchromatic band) at 120m AGL
▪ Capture rate: 2-3 captures per second raw DNG
▪ Interfaces: 4 GPIO: Trigger input, top of frame out, 1 PPS out, host button. USB 2.0 port for WiFi, serial, 10/100/1000 ethernet, and CF Express Storage.
▪ Field of view: o 49.6° HFOV x 38.3° VFOV (MS)
o 44.5° HFOV x 37.7° VFOV (PAN)
▪ Triggering options: Timer mode, overlap mode, external trigger mode (PWM, GPIO, serial and Ethernet options), manual capture mode
▪ Heat: 0-40C ambient (no airflow); 0-50C ambient with airflow >0.5m/s
* with appropriate post-processing
Note: Specifications are subject to change without notice
